Explore Every Simple Pump Part

From pump heads to well caps and seal kits, find the exact part you need to build or repair your Simple Pump system.

✓ Complete spare parts kits for quick repairs

✓ Individual parts with technical specifications

✓ Expert support for part identification and compatibility

Request Quote Call (877) 492-8711

Complete Simple Pump system showing all major parts

Complete Parts Catalog

Search, filter, and browse our complete inventory of Simple Pump components, spare parts, and accessories

Showing 61 of 61 parts

Spare Parts & Seal Kits

Replacement seals, gaskets, and maintenance parts

7 parts

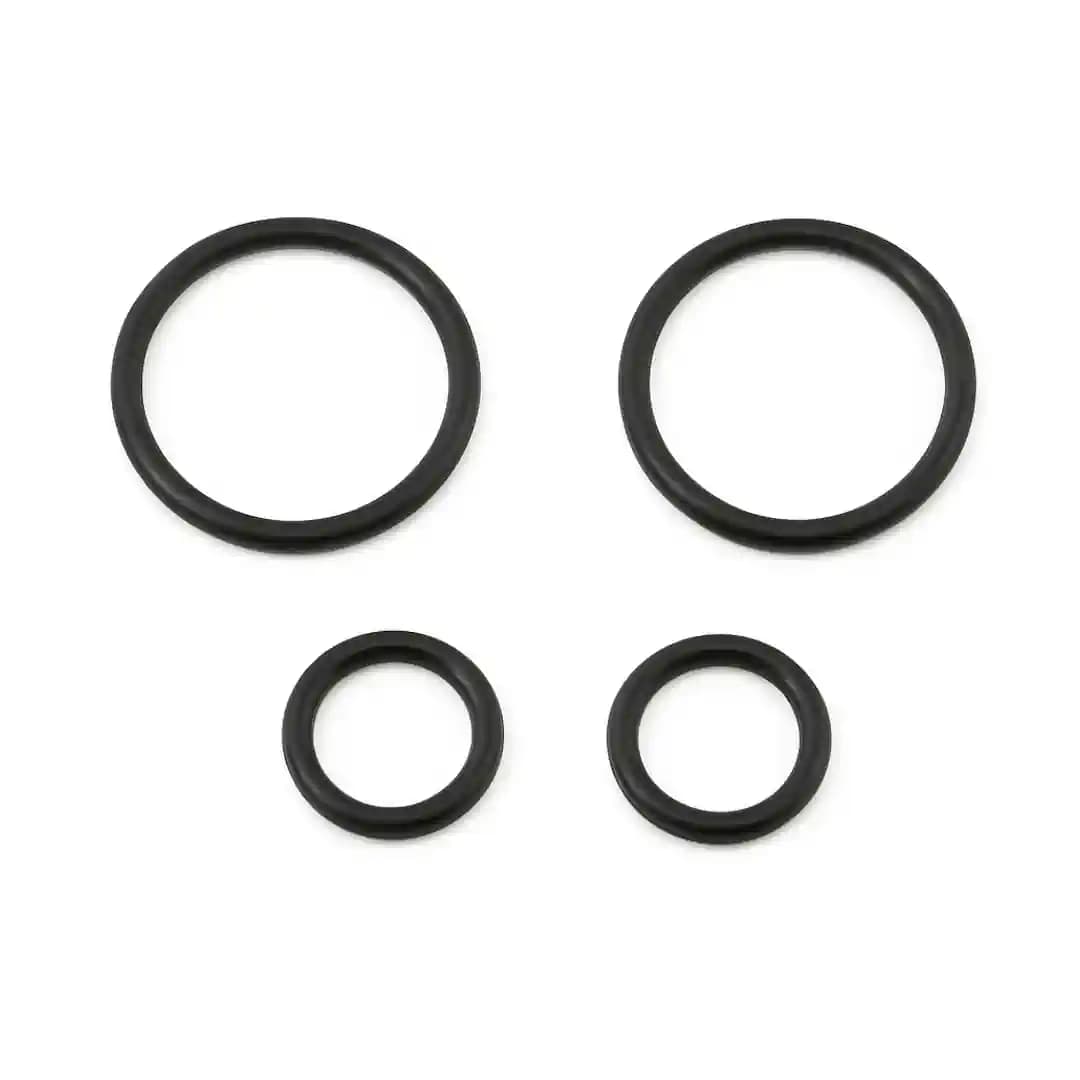

Alternate Seal Kit for Model 125 Series

SK125BU

Alternate seal replacement kit for the Model 125 Simple Pump cylinder and pump head. Restores original performance and prevents water leakage.

$33.00

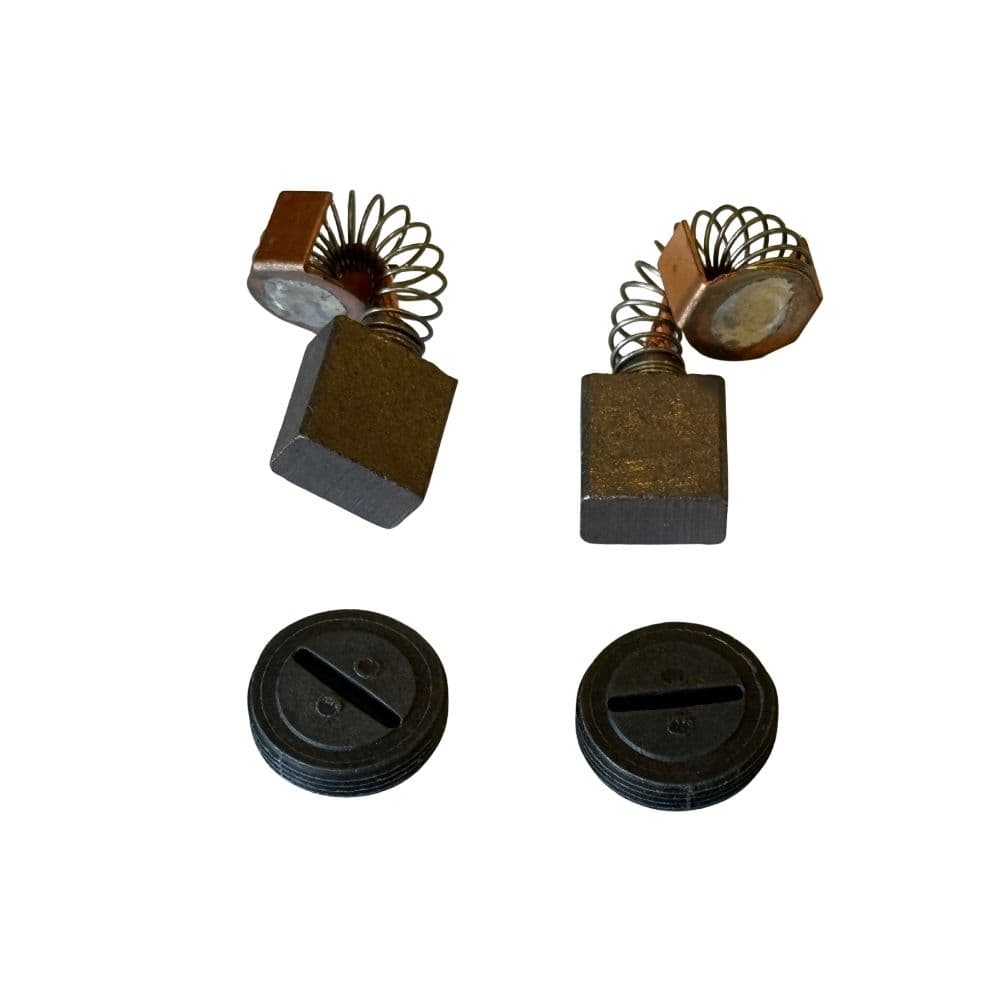

Motor Cap & Brush Kit

Brush/Cap Kit - RAE

Cap and brush replacement for 12V or 24V RAE gear motors. (Qty 2)

$50.00

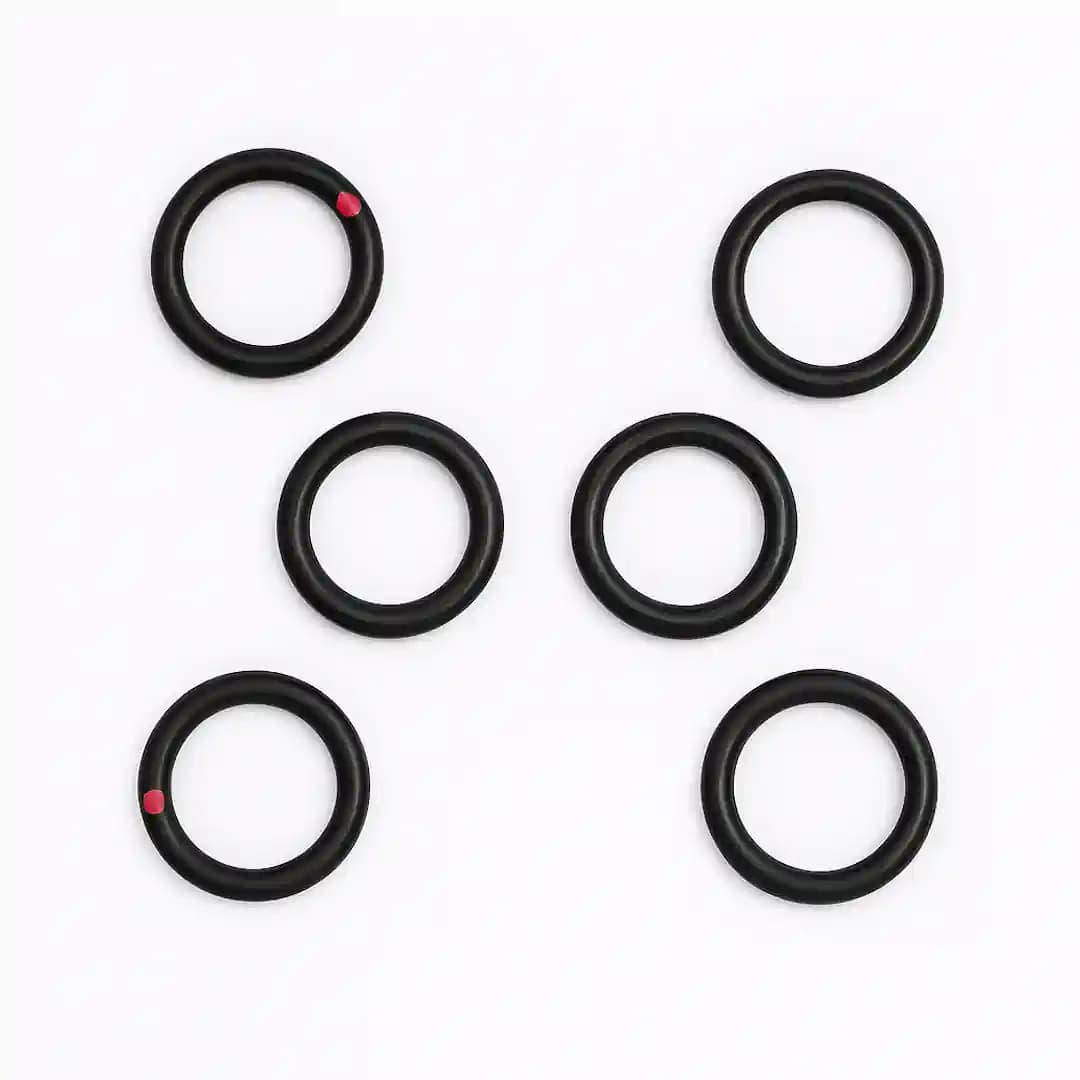

Seal Kit for 100CA

SK100BU

Seal replacement kit for the Simple Pump 100CA pump cylinder and pump head. Restores proper sealing and maintains smooth pump operation.

$28.00

Seal Kit for 125CA

SK125-82515

Seal replacement kit for the Simple Pump 125CA pump cylinder and pump head. Restores optimal performance and prevents water leakage.

$33.00

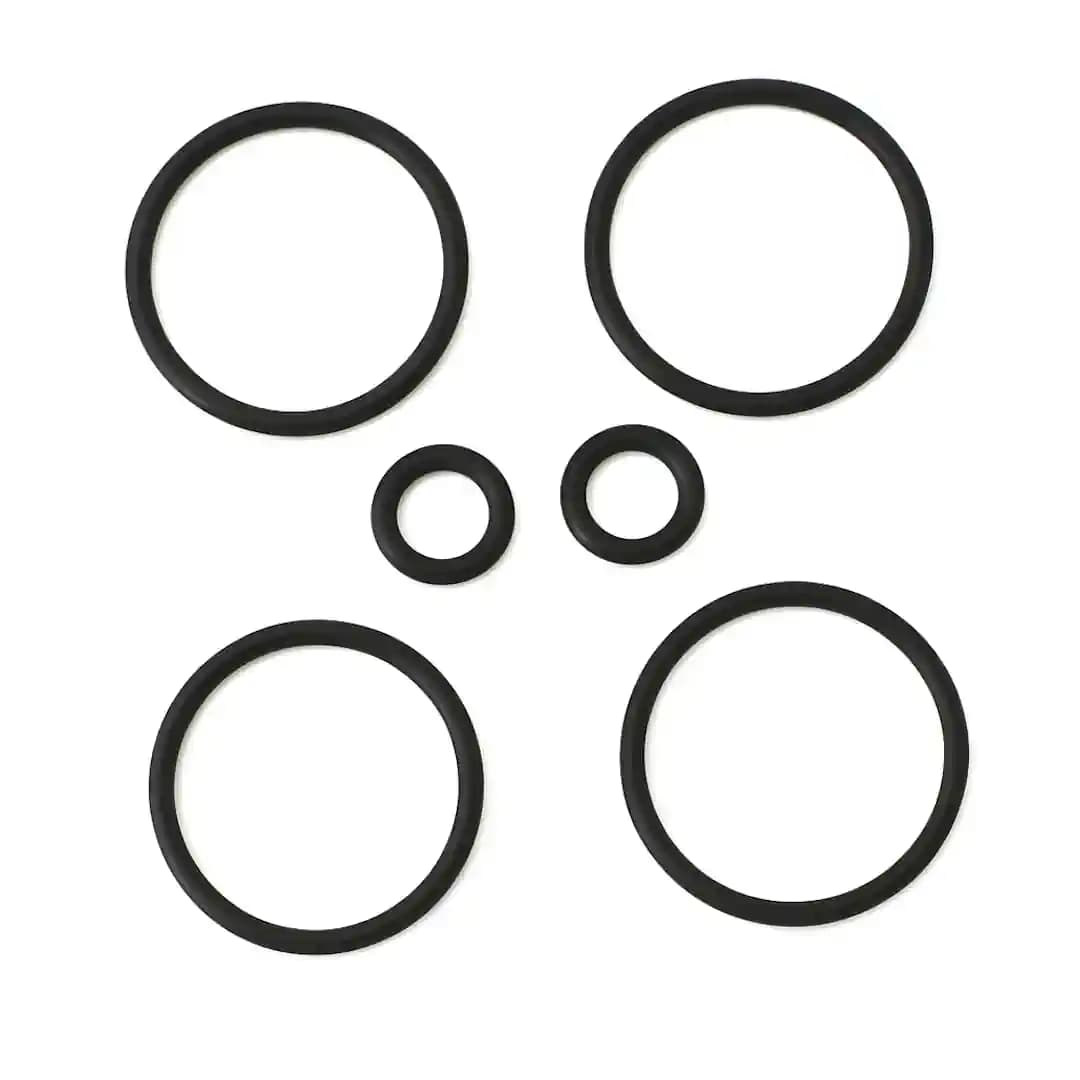

Seal Kit for 200CA

SK200

Seal replacement kit for the Simple Pump 200CA pump cylinder and pump head. Restores optimal performance and prevents water leakage.

$38.00

Spare Parts Kit (Heavy-Duty)

SPK-HD

Replacement parts kit for the Simple Pump heavy-duty handle assembly. Includes critical wear components to restore reliable operation and smooth performance.

$233.00

Spare Parts Kit (Standard)

SPK

Replacement parts kit for the Simple Pump standard handle assembly. Includes critical wear components to restore reliable operation and smooth performance.

$98.00

Lever Arms

Hand pump handles

4 parts

24" Heavy Duty Lever-arm Pump Handle Assembly

24LAHD

Heavy-Duty 24" lever-arm assembly designed for high-cycle or commercial use. Incorporates stainless roller bearings at all pivot points.

$500.00

24" Lever-Arm Pump Handle

24LA

24" lever-arm pump handle with graphite-impregnated bronze bushings for smooth operation and reduced friction.

$90.00

36" Heavy Duty Lever-arm Pump Handle Assembly

36LAHD

Heavy-Duty 36" lever-arm assembly with stainless roller bearings for extreme-duty or high-cycle applications.

$515.00

36" Lever-arm Pump Handle

36LA

36" lever-arm pump handle. Graphite-impregnated bronze bushings at pivot points. Reduces pumping effort by ~50% for deeper water levels.

$115.00

Pump Heads

Complete pump head assemblies and components

6 parts

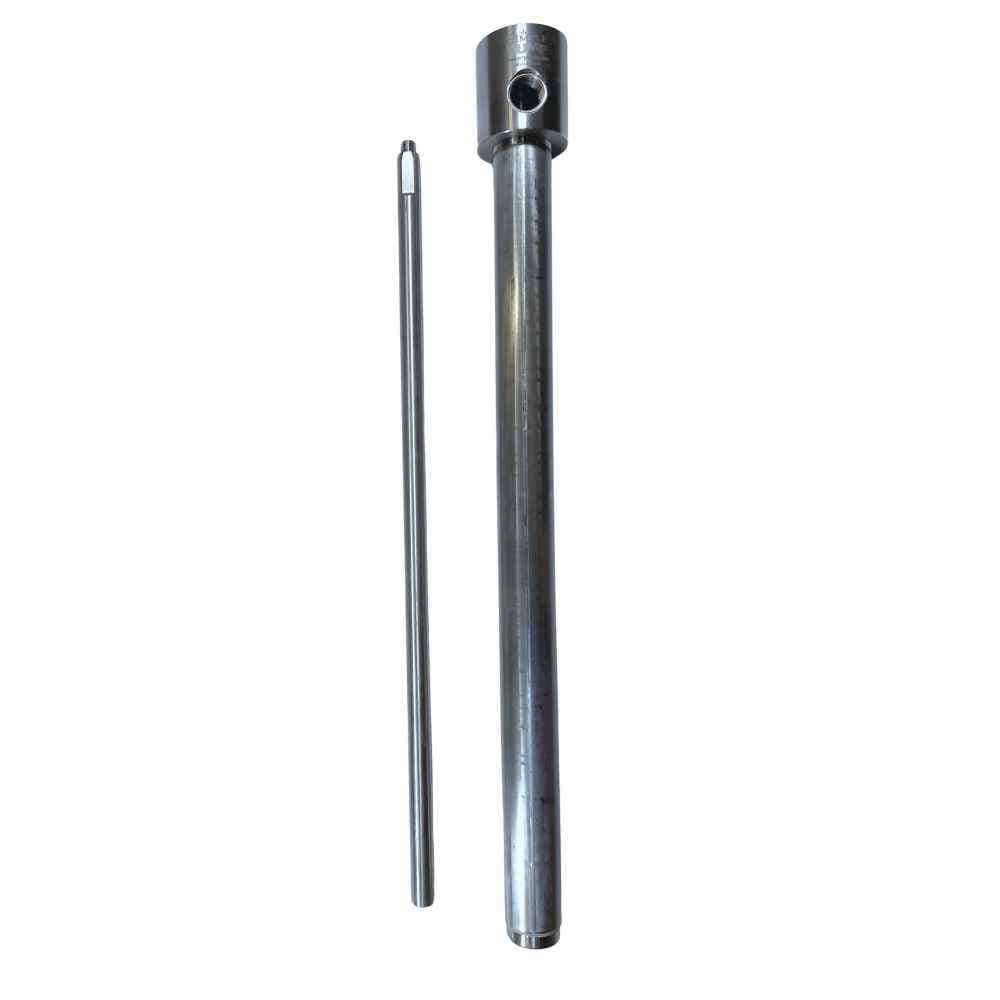

Double-Height Pump Head Assembly

PHA-47

Same as PHA-2 but double-height for lower casing (11" above to 12" below ground). Includes three connection options (¾" hose, ¾" FNPT, 90° stainless street elbow).

$800.00

Double-Height Pump Head Assembly for HD Handle or DC Drive

PHA-47-ME/GM

Same as PHA-2-ME/GM but double-height for lower casing (11" above to 12" below ground). Same connections as PHA-47 without the standard handle assembly and hardware.

$670.00

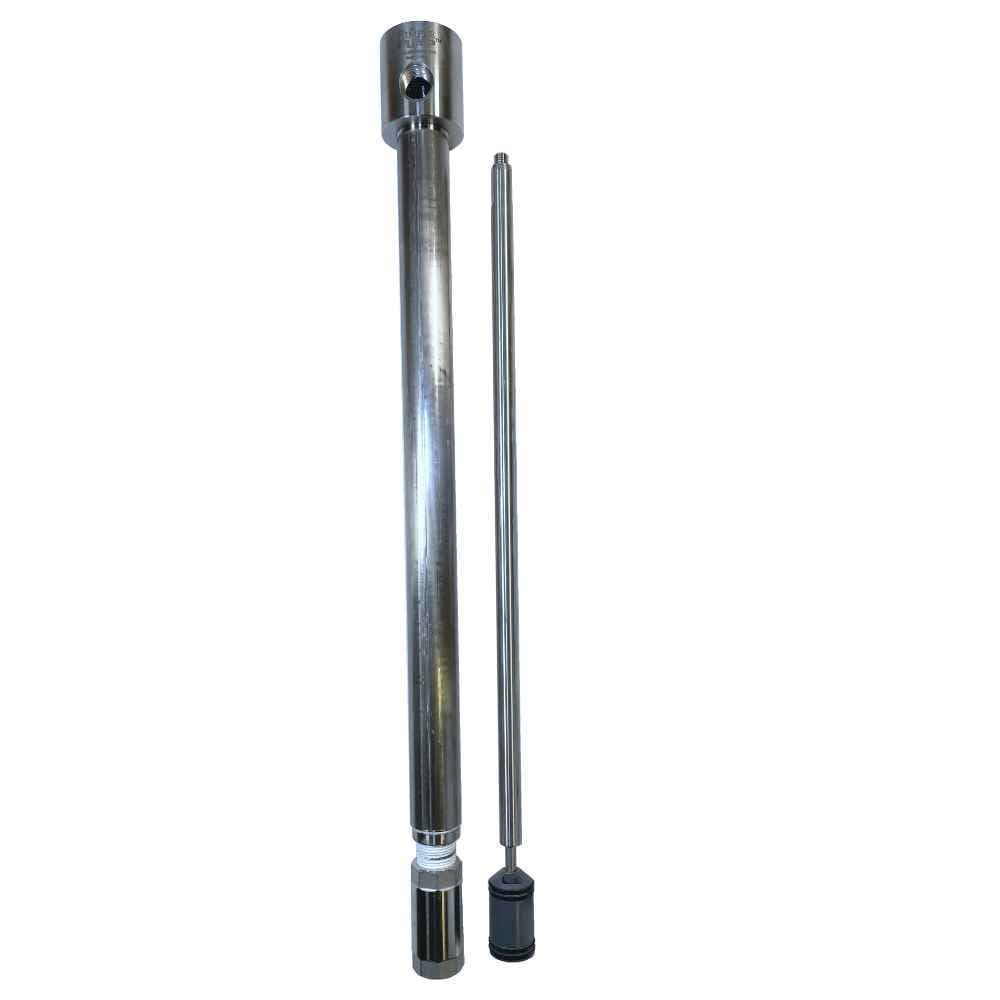

Double-Height Suction Pump Head Assembly

PHA-47-S-25

Same as PHA-2-S-25 but double-height for lower casing (11" above to 12" below ground). Suction Pump Head Assembly with 125 piston. Output: 8.5 oz per full stroke.

$825.00

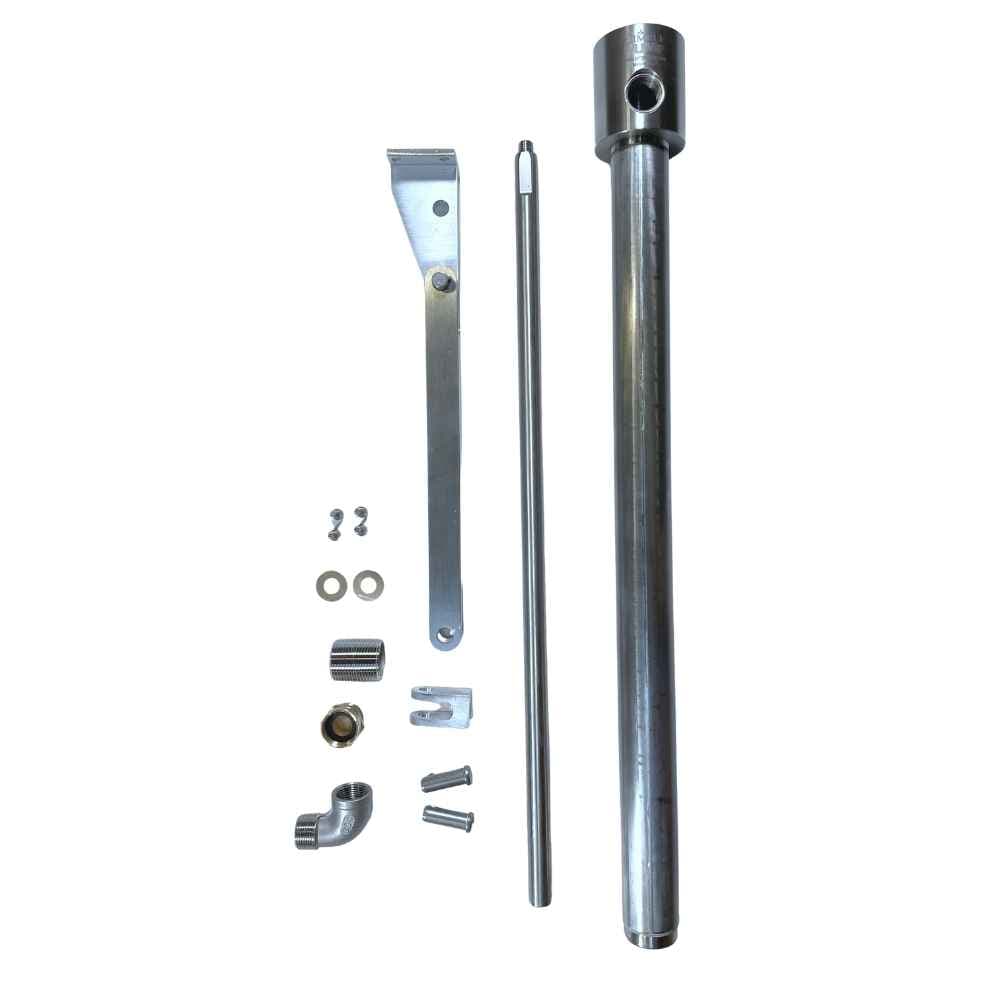

Pump Head Assembly

PHA-2

Pump Head Assembly for standard-height casings (12" or more above ground). Three connection options: ¾" hose adapter, ¾" FNPT, and 90° stainless street elbow.

$700.00

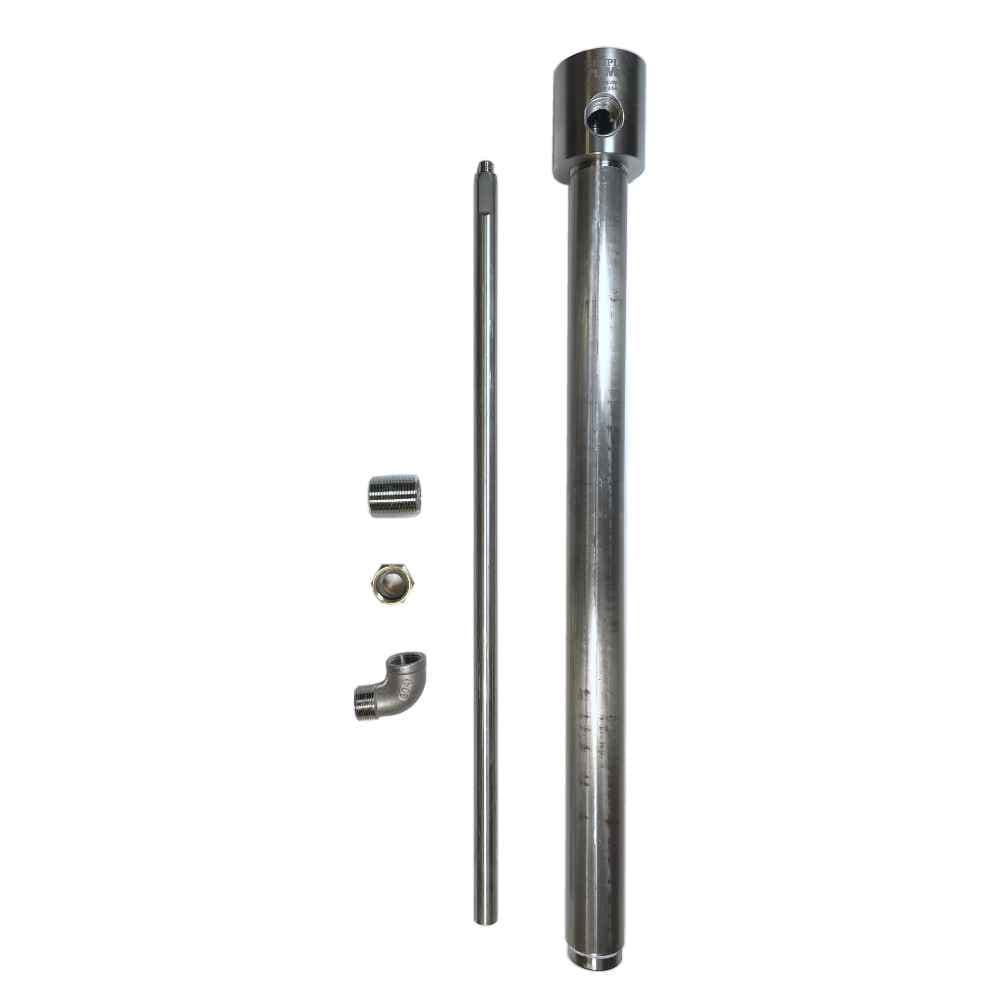

Pump Head Assembly for HD Handle or DC Drive

PHA-2-ME/GM

Pump Head Assembly for HD Handle or DC Drive for standard-height casing. Same connections as PHA-2 without the standard handle assembly and hardware.

$570.00

Suction Pump Head Assembly

PHA-2-S-25

Suction Pump Head Assembly with 125 piston. Standard-height casing. Three connection options: ¾" hose, ¾" FNPT, and 90° SS street elbow. Output: 8.5 oz per full stroke.

$725.00

Well Caps

Well casing caps from 2" to 8" diameter

18 parts

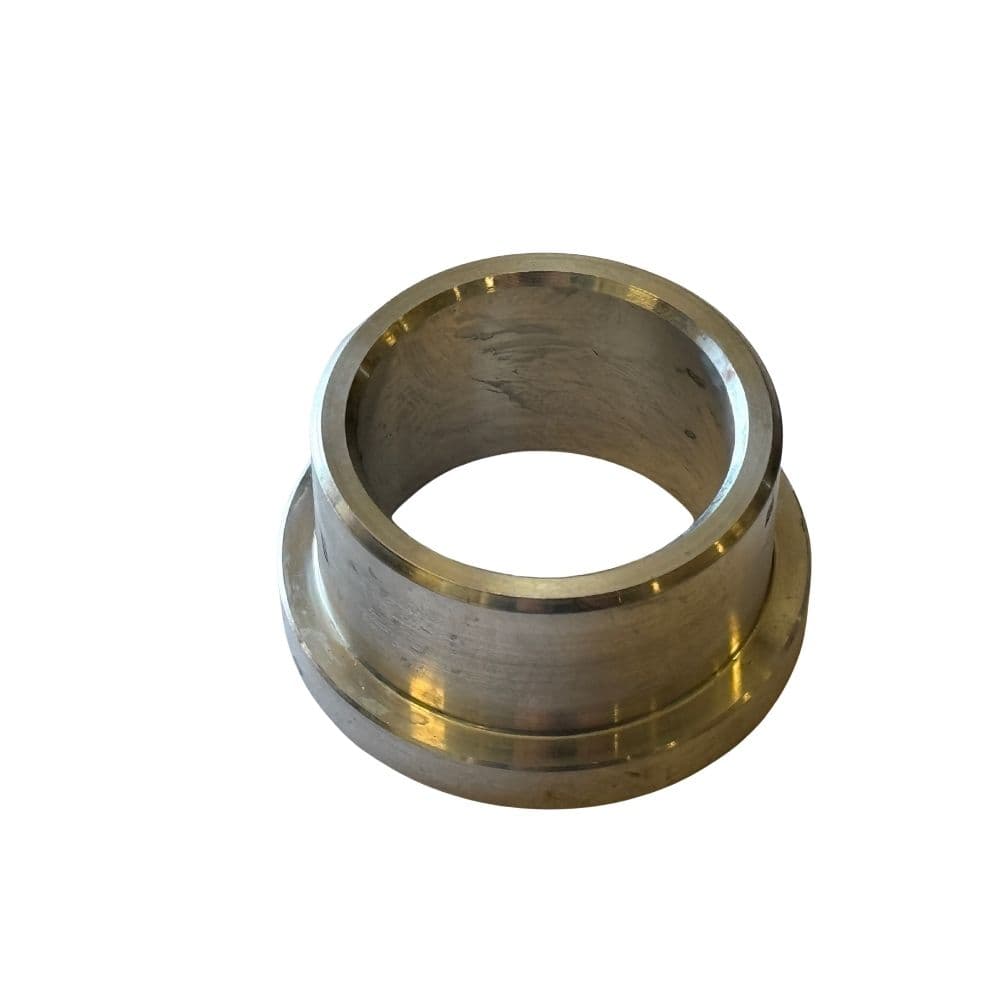

1” Submersible Pipe Bushing

SIM126

Bushing for Simple Pump machined well caps to adjust the submersible port from a 1 1/4” pipe opening to a 1” pipe.

$17.00

2" Well Cap Assembly

C2-Assy

Simple Pump's 2" well cap. One 1¾" port with split flange for Simple Pump; CNC-machined from solid billet aluminum.

$90.00

3" Well Cap Assembly

C3-Assy

Simple Pump's 3" well cap. One 1¾" port with split flange for Simple Pump; CNC-machined from solid billet.

$105.00

4.5" Well Cap Assembly

C4.5-Assy

Simple Pump's 4.5" well cap with three ports for pump, electrical, and submersible. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$110.00

4" Well Cap Assembly

C4-Assy

Simple Pump's 4" well cap with three ports for pump, electrical, and submersible. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$110.00

5.5" Boshart Well Cap Assembly

C56WTCC-CI-Assy

5.5" Boshart cast-iron well cap for use with submersible pitless adapter configuration. With three ports for pump, electrical, and auxiliary connections.

$145.00

5.5" Well Cap Assembly

C5.5-6.25/4-Assy

Simple Pump's 5.5" well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$135.00

5" Boshart Well Cap Assembly

C5WTCC-CI-Assy

5" Boshart cast-iron well cap for use with submersible pitless-adapter configuration. With three ports for pump, electrical, and auxiliary connections.

$135.00

5" Well Cap Assembly

C5-Assy

Simple Pump's 5" well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$125.00

6.25" Boshart Well Cap Assembly

C7WTCC-CI-Assy

6.25" Boshart cast-iron well cap for use with submersible pitless-adapter configuration. With three ports for pump, electrical, and auxiliary connections.

$165.00

6" Boshart Well Cap Assembly

C6WTCC-CI-Assy

6" Boshart cast-iron well cap for use with submersible pitless-adapter configuration. With three ports for pump, electrical, and auxiliary connections.

$155.00

6"-6.25" w/2.375" Sub Port Well Cap Assembly

C6-6.25/2.375aux-Assy

Simple Pump's 6"-6.25” w/2.375” sub port well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$140.00

6"-6.25" w/4" Liner Well Cap Assembly

C6-6.25/4-Assy

Simple Pump's 6"-6.25” w/4” liner well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$135.00

6"-6.25" Well Cap Assembly

C6-6.25-Assy

Simple Pump's 6"-6.25” well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$135.00

8" Well Cap Assembly

C8-Assy

Simple Pump's 8" well cap with four ports for pump, electrical, submersible, and auxiliary connections. CNC-machined from solid billet aluminum. (Submersible pump pipe through cap design)

$140.00

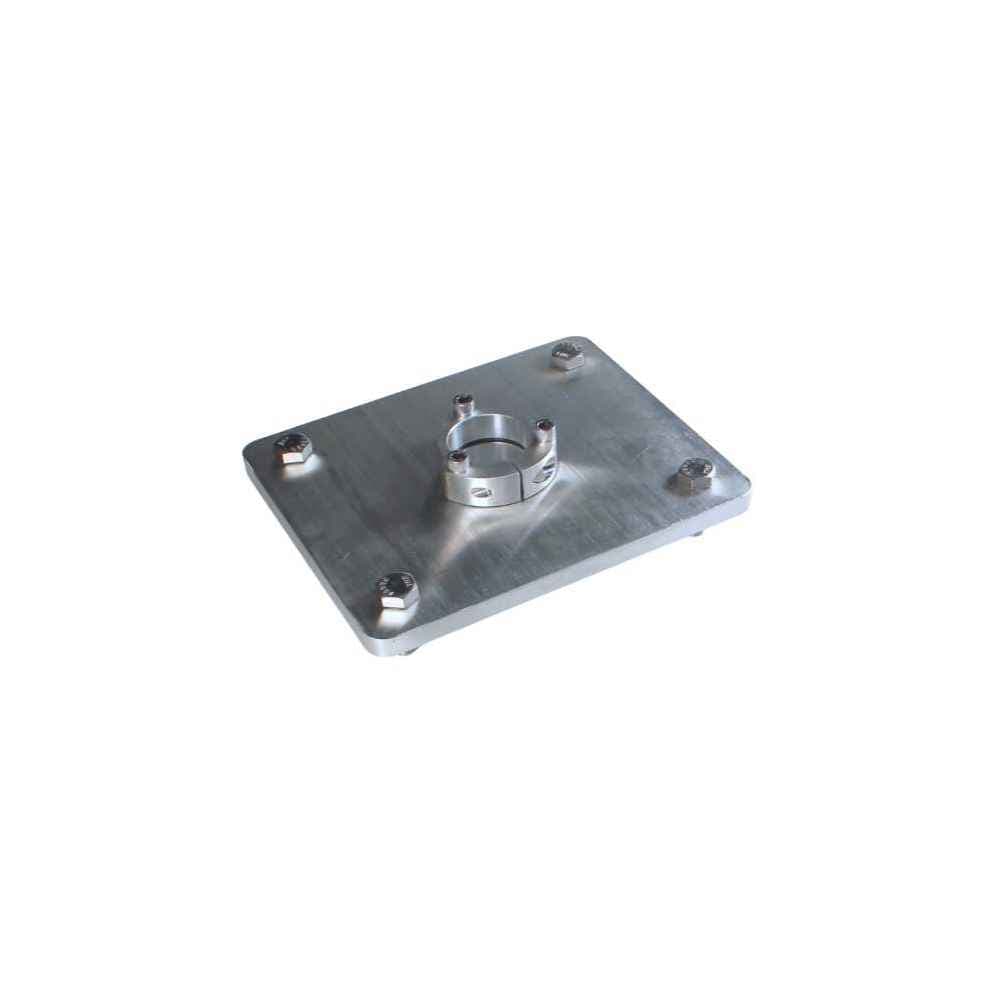

Mounting Plate Assembly

SIM082-Assy

Mounting plate with split flange for installing Simple Pump on dug well, cistern, or tank.

$135.00

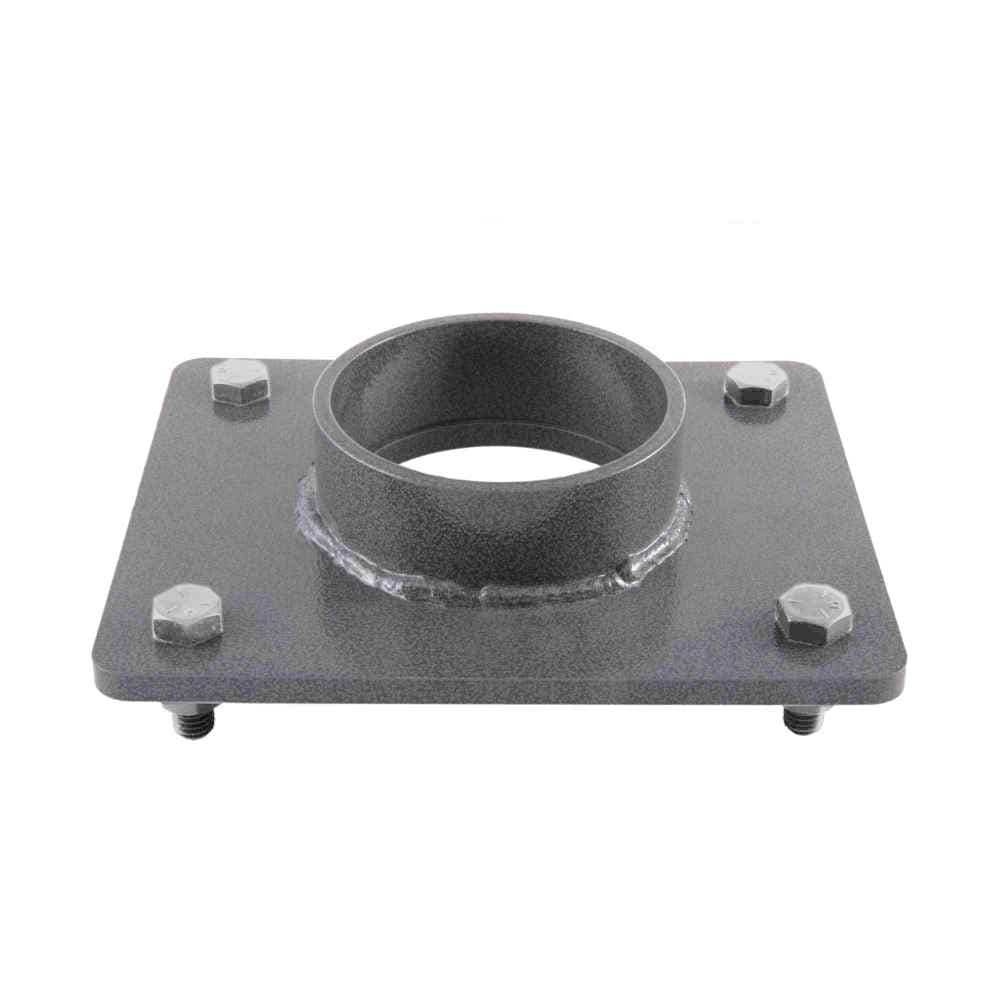

Pedestal Adapter Assembly

SIM072-Assy

Pedestal adaptor to install a Simple Pump on a concrete, metal, or wood cover of a hand-dug well, cistern, or tank. Accommodates a submersible pipe if required.

$135.00

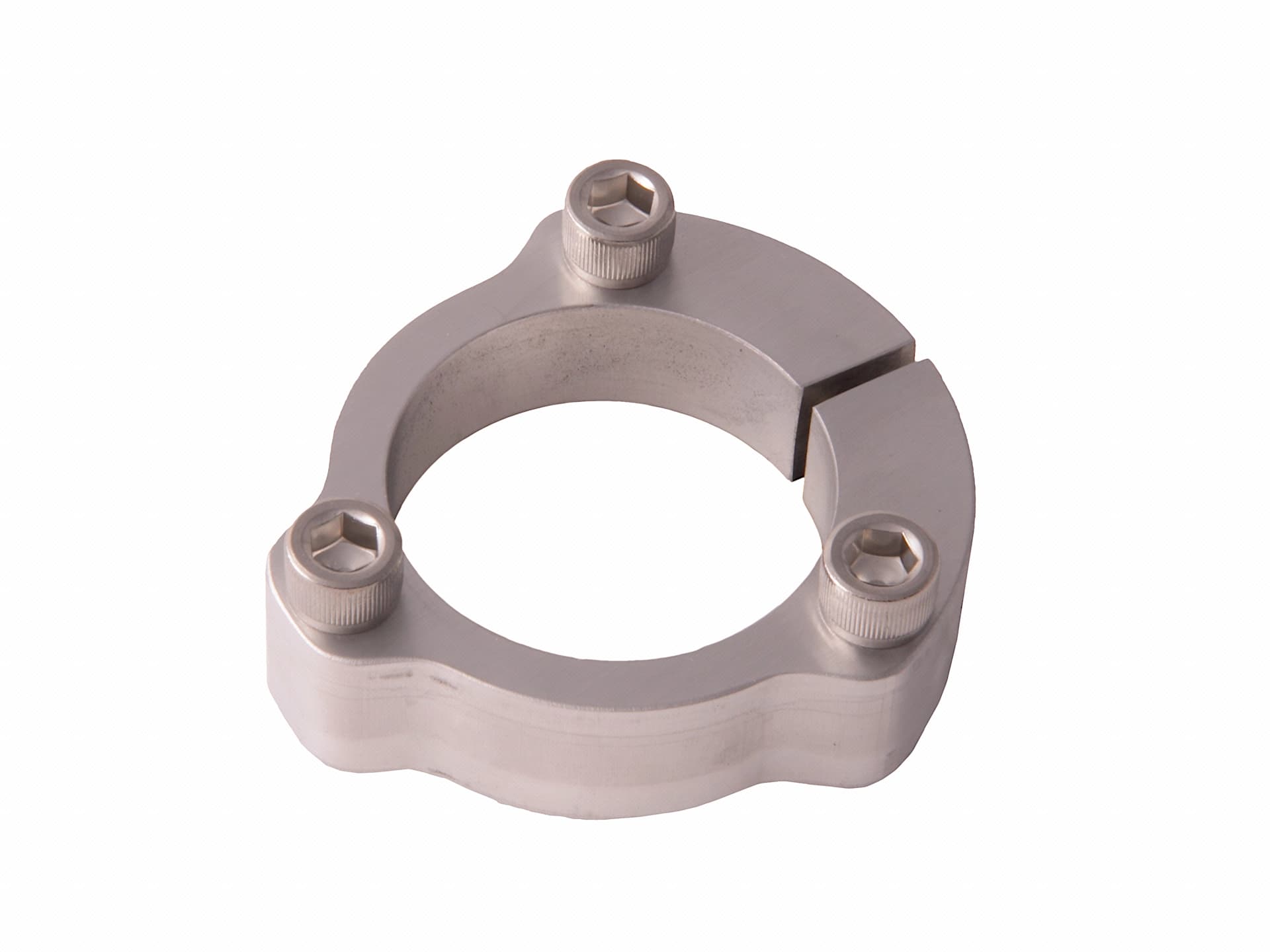

Split Flange Assembly

Split-Flange-Assembly

Split flange with hardware to mount Simple Pump to an existing well cap or SIM082 mounting plate. Includes O-ring seal.

$40.00

Drop Pipe Systems

Drop pipe kits for various depths and configurations

6 parts

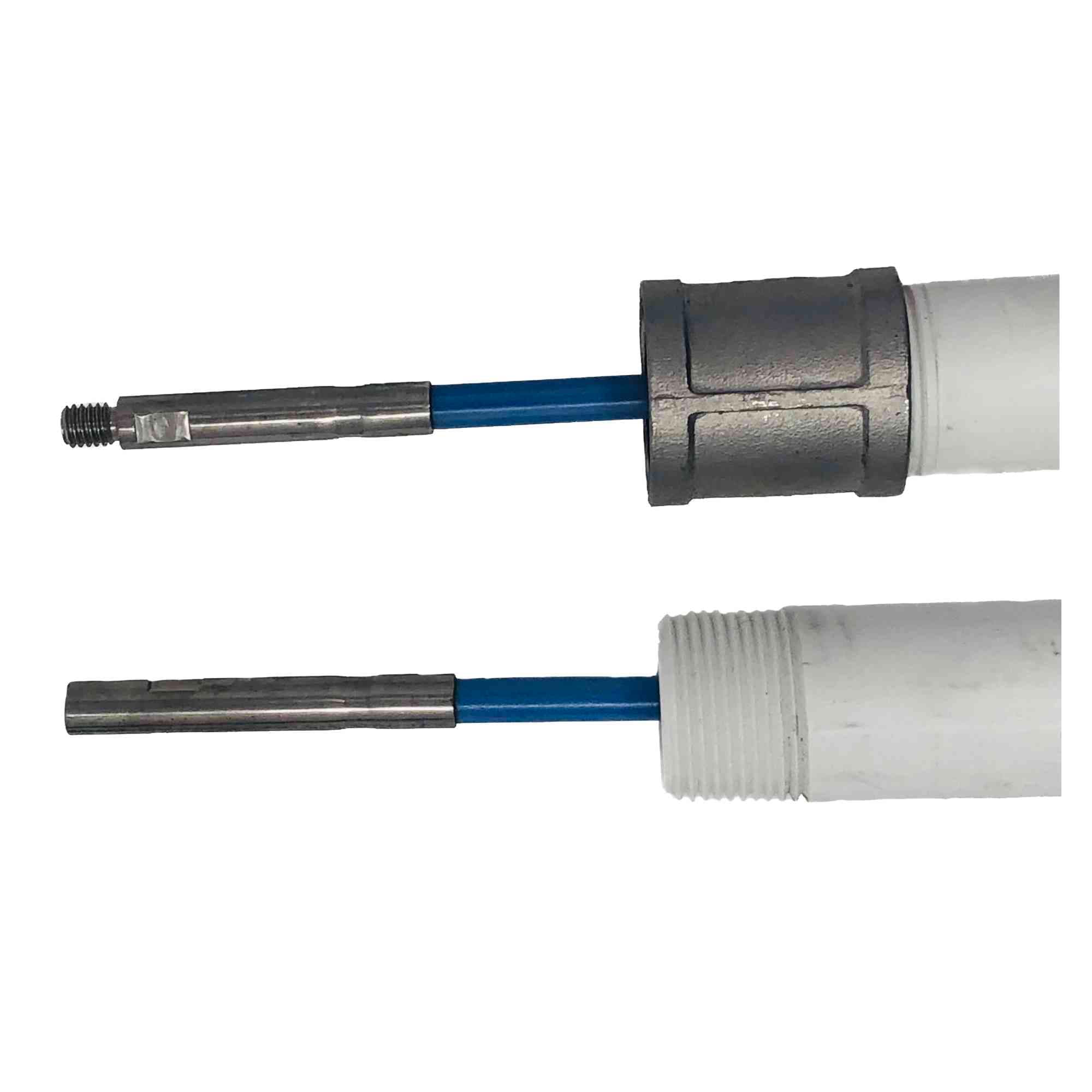

105" Drop Pipe Kit

105DPSS-KIT

105” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. No weep hole.

$60.00

105" Top Drop Pipe Kit (Custom Weep Hole)

105DPTCSS-KIT

105” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. User-specified 1⁄16″ weep hole from 1″–96″.

$60.00

105" Top Drop Pipe Kit (Standard Weep Hole)

105DPTSS48-KIT

105” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. 1⁄16″ weep hole at 48″.

$60.00

27" Drop Pipe Kit

27DPSS-KIT

27” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. No weep hole.

$45.00

54" Drop Pipe Kit

54DPSS-KIT

54” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. No weep hole.

$50.00

54" Top Drop Pipe Kit (Standard Weep Hole)

54DPTSS48-KIT

54” drop pipe kit: 1” PVC drop pipe, stainless-steel coupler, lift rod with 304 SS rod ends, and rod guide. Standard 1⁄16″ weep hole at 48″.

$50.00

Pump Cylinders

Pump cylinder assemblies and components

3 parts

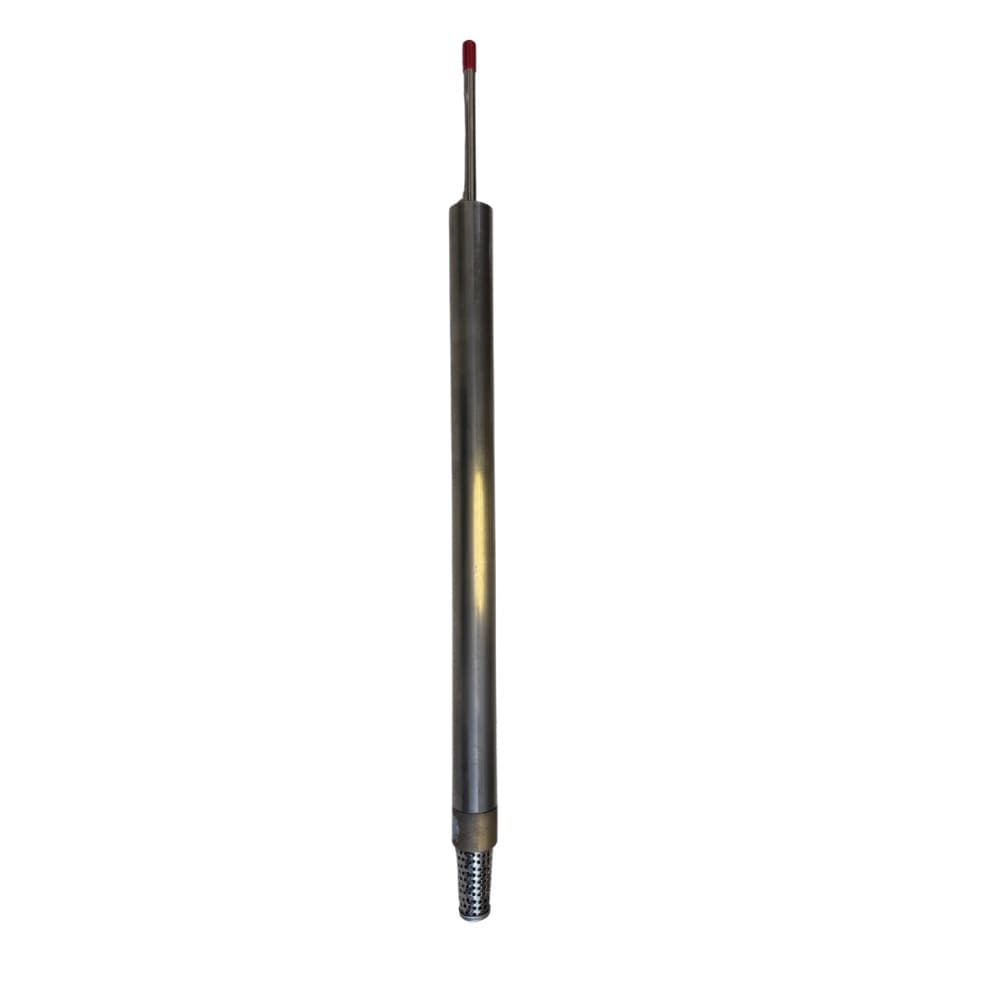

Model 100CA Pump Cylinder Assembly

100CA

Simple Pump’s deepest lifting pump cylinder. Pumps up to 4.5 oz per stroke with a maximum lift of 325 feet.

$400.00

Model 125CA Pump Cylinder Assembly

125CA

Simple Pump’s mid-range capacity cylinder. Pumps up to 8.5 oz per stroke with a maximum lift of 225 feet.

$475.00

Model 200CA Pump Cylinder Assembly

200CA

Simple Pump’s largest capacity cylinder. Pumps up to 20 oz per stroke with a maximum lift of 110 feet. Designed for high-volume shallow to mid-depth wells.

$600.00

Motors & Solar

Motor assemblies, solar panels, and automated pumping systems

7 parts

Featured

12V Linear Bearing Link Drive Motor Assembly

LBLD12-Assy

12V DC, 1/5 HP motor with linear bearing link drive for Simple Pump. Replaces hand lever to automate pumping from depths up to 200 feet.

$1075.00

12V Weather Resistant Linear Bearing Link Drive Motor Assembly

LBLD12WR-Assy

12V DC, 1/5 HP weather-resistant motor with aluminum enclosure and linear bearing link drive. Automates Simple Pump operation from depths up to 200 feet.

$1450.00

24V Linear Bearing Link Drive Motor Assembly

LBLD24-Assy

24V DC, 1/4 HP motor with linear bearing link drive for Simple Pump. Replaces hand lever to automate pumping from depths up to 225 feet.

$1100.00

24V Weather Resistant Linear Bearing Link Drive Motor Assembly

LBLD24WR-Assy

24V DC, 1/4 HP weather-resistant motor with aluminum enclosure and linear bearing link drive. Automates Simple Pump operation from depths up to 225 feet.

$1500.00

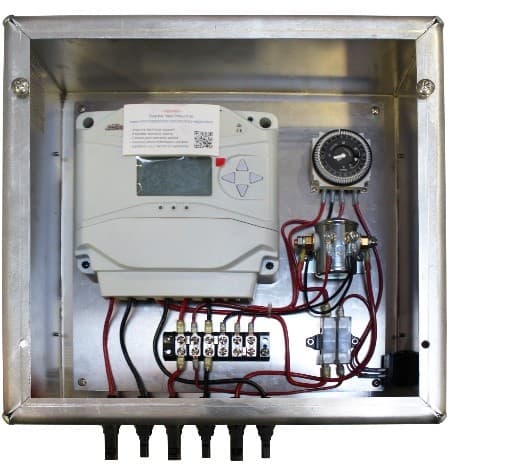

Solar Power Battery Backup – Drive Only

LBLD24-5S-Assy

Solar power drive assembly for Simple Pump motorized systems. Includes LBLD drive, control box, wiring, and weather-resistant hardware. No solar panels, mounting hardware, or batteries included.

$2500.00

Featured

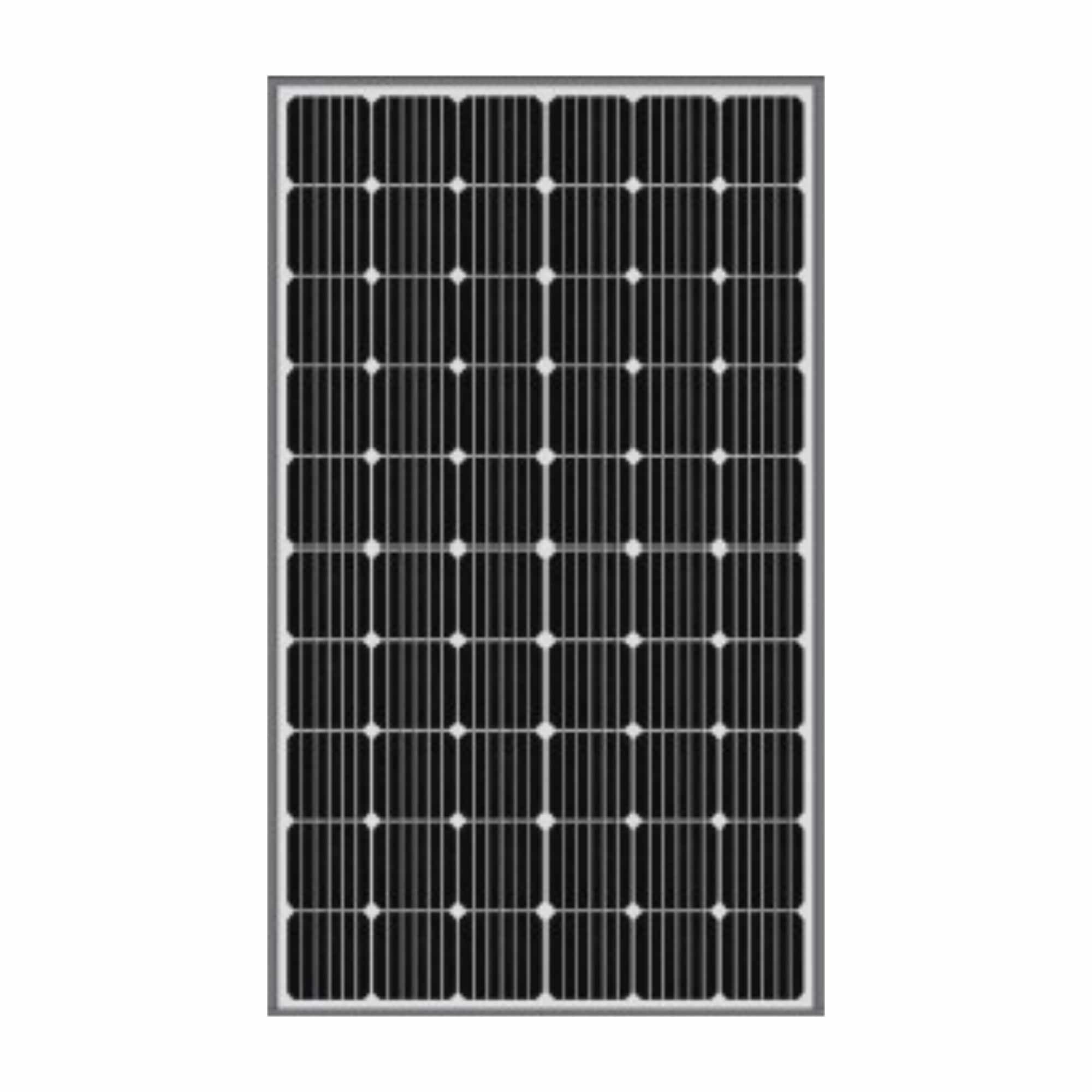

Solar Power Battery Backup – Panels and Mounting Hardware

PS2-Double Module Package

Solar panel and mounting hardware package for Simple Pump systems. Includes panels and mounting hardware only. Controller, wiring, and batteries sold separately. Does not include LBLD drive, control box, wiring, and weather-resistant hardware.

$1700.00

Solar Power Battery Backup Well Pump Kit

Battery-Backup

Complete solar-powered Simple Pump system with 12V or 24V LBLD drive, control box, solar panels, and mounting hardware. Provides fully off-grid water pumping with battery backup capabilities. Does not include batteries.

$4200.00

Installation Tools

Simple Pump installation tools

4 parts

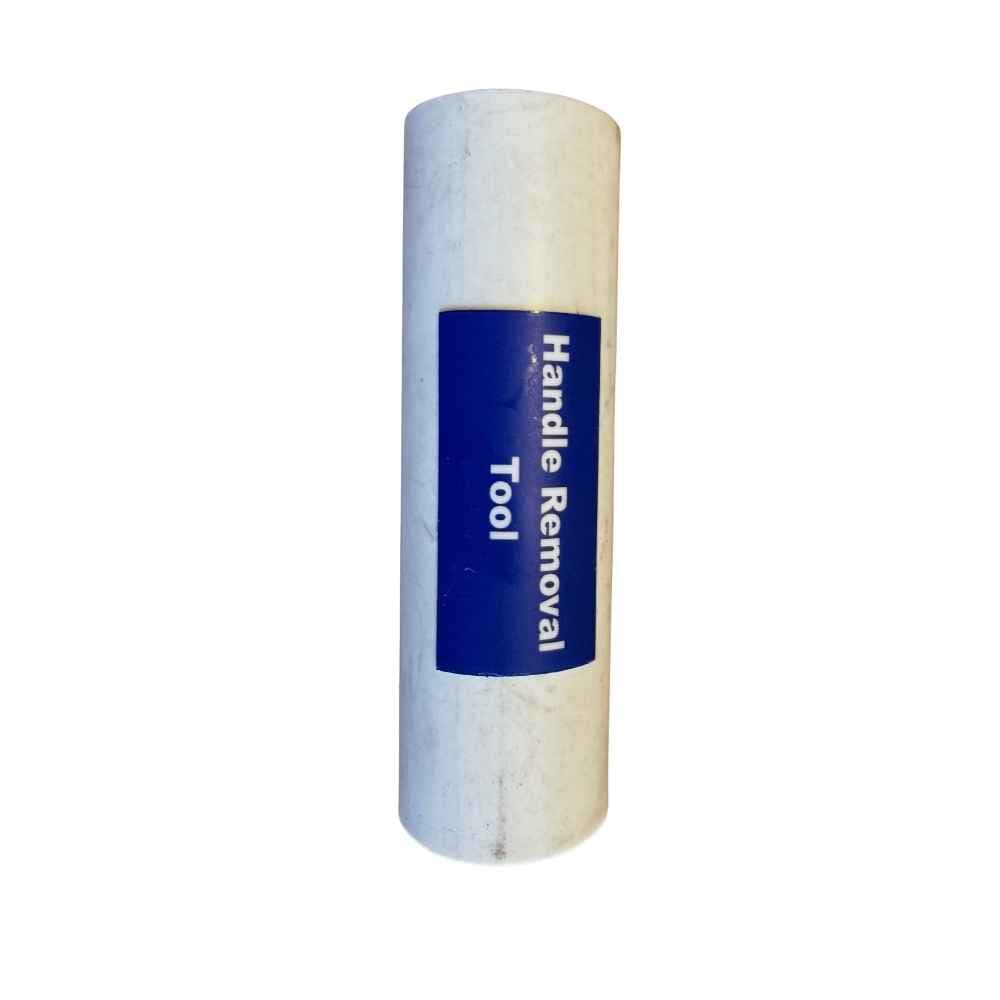

Handle Removal Assistance Tool

SIM128

Machined PVC tool designed to simplify removal and reinstallation of the Simple Pump handle. Reduces strain on the bracket and uses water weight for easier disassembly.

$5.00

Heavy-Duty T-Handle Installation Tool

TH-HD-1Assy

Galvanized steel T-handle tool for lifting 16 or more drop pipe kits (150 ft+). Designed for deep well installations requiring extra leverage and control.

$25.00

Installation Safety Tool

SIM073

Machined from a solid billet of aluminum. Holds each drop pipe securely during installation to prevent the pump from falling into the well.

$32.00

T-Handle Installation Tool

TH-1Assy

PVC T-handle tool for lifting 8-15 drop pipe kits (72-149 ft). Designed for deep well installations requiring extra leverage and control.

$12.00

General Components

Adapters, fittings, hardware, and miscellaneous parts

6 parts

6x5 Sleeve

6x5-Sleeve

6” SDR26 PVC well casing sleeve, 5’ in length. Adds structural strength to existing well casing and reinforces the casing opening.

$70.00

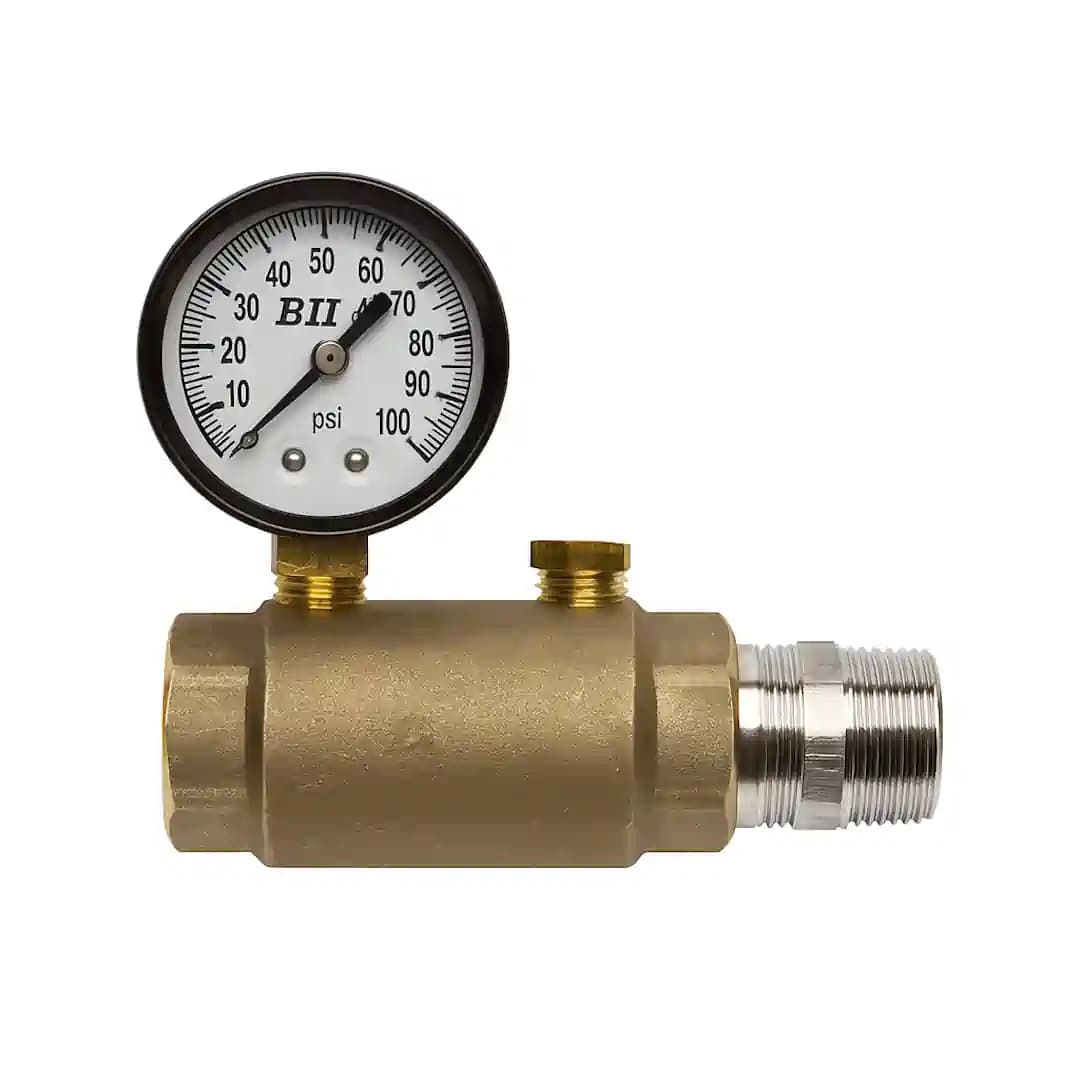

Check Valve / Gauge Assembly

CV-1-Kit

One-way check valve with pressure gauge for connecting the Simple Pump to a pressure tank or uphill plumbing. Includes air port for freeze protection.

$75.00

Hand Pump Display Unit

FC-1-Assy

Display stand for showcasing the Simple Pump hand pump. Includes aluminum frame, faux well casing, and cutaway view. Pump components sold separately.

$150.00

Pitless Adaptor Assembly

PA-1-Assy

Frost-proof pitless adaptor for connecting the Simple Pump to underground plumbing. Creates a sealed, hygienic barrier between the well and your water system.

$300.00

Pressure Switch 20 psi – 40 psi

PS20-40

Factory-set pressure switch for operating a DC powered Simple Pump with a pressure tank. Turns on at 20 psi and off at 40 psi for automatic water flow control.

$45.00

Pressure Switch 30 psi – 50 psi

PS30-50

Factory-set pressure switch for DC powered Simple Pump systems. Turns pump on at 30 psi and off at 50 psi for automatic water pressure control.

$45.00

Maintenance & Parts Guide

Comprehensive maintenance information for keeping your Simple Pump system operating at peak performance

What Parts Will Wear Out?

Primary wear components: The Simple Pump has working u-cup seals at various locations in the pump assembly. These are made of safe, durable rubber products.

Expected lifespan: Unless your water is unusually gritty, these seals should last for many years. Normal use in clean water provides excellent longevity.

Included spare kit: One spare seal kit ships with every Simple Pump for future maintenance needs.

Replacement availability: Additional replacement u-cup seals can be purchased directly from Simple Pump.

Cylinder Piston Seal Maintenance

Model-specific maintenance: Each cylinder model (100CA, 125CA, 200CA) has specific seal replacement procedures and seal types.

2023 improvement: Starting in 2023, we utilize four identical seals for enhanced durability, seal life, and easier maintenance.

Service requirement: To replace cylinder piston seals, the pump system must be pulled from the well as the piston is located in the pump cylinder at the bottom.

Professional installation: Contact our technical support team or find a local dealer for assistance with seal replacement.

Maintenance Parts Quick Reference

Motor Cap & Brush Kit

Cap and brush replacement for 12V or 24V RAE gear motors. (Qty 2)

View Details

Seal Kit for 125CA

Seal replacement kit for the Simple Pump 125CA pump cylinder and pump head. Restores optimal performance and prevents water leakage.

View Details

Spare Parts Kit (Standard)

Replacement parts kit for the Simple Pump standard handle assembly. Includes critical wear components to restore reliable operation and smooth performance.

View Details

Need Help Finding the Right Part?

Our technical support team can help identify the exact parts you need based on your pump model, well conditions, and specific requirements.

Contact Support Request Part Quote
