Pump Motors

Simple Pump’s Motor-Operated Pumps

Simple Pump’s Motor-Operated Water Pumps are built on the same Simple Pump piston rod pump system used in the hand pump models. The motor is added to the base water pump structure to provide an automated pumping system for your water well.

This design allows for unique interchangeability not offered in other water pump systems where the pump head can be quickly changed from a motor-operated pump to a hand-operated pump within a matter of minutes in the case of a power outage.

High-Quality Components

Pump Head

The Pump Head is the assembly visible above the ground. Here it is shown with the Linear Bearing Link Drive motor. Simple Pump has designed the pump head to be interchangeable with hand-operated options and motor operated options.

Open motor cabinet showing motor and controls.

Drop Pipe Kit

Simple Pump utilizes drop pipe kits that attach to the pump head and can extend below the well water level.

A series of connected drop pipe kits carry water from the stainless steel pump cylinder at the bottom of the pump system to the stainless steel pump head at the top of the pump system.

End view of drop pipe showing lift rod and rod guide.

Pump Cylinder

Simple Pump’s pump cylinder contains the piston that lifts the water in the pump. Simple Pump offers different cylinder options depending on your well’s static water level and the type of motor connected to the water pump system.

Expanded image showing the pump cylinder's two ball valves and piston.

Motor Pump Drive Options

Simple Pump's linear bearing link drive, with cover removed to show mechanism.

Linear Bearing Link Drive

The power requirements for the Linear Bearing Link Drive motor at 100-foot static water level, pumping into an ambient tank are:

12VDC

  • 16 amps peak
  • 25 amp fuse
  • 10-11 amps average draw

24VDC

  • 8 amps peak
  • 15 amp fuse
  • 5-6 amps average draw
Simple Pump's Scotch Yoke motor drive linkage, with cover removed to show mechanism.

Scotch Yoke Drive

The power requirements for the Scotch Yoke drive at 100-foot static water level, pumping into an ambient tank are:

12VDC

  • 18 amps peak
  • 25 amp fuse
  • 11-12 amps average draw

24VDC

  • 9 amps peak
  • 15 amp fuse
  • 6-7 amps average draw

Motor Pump Housing Options

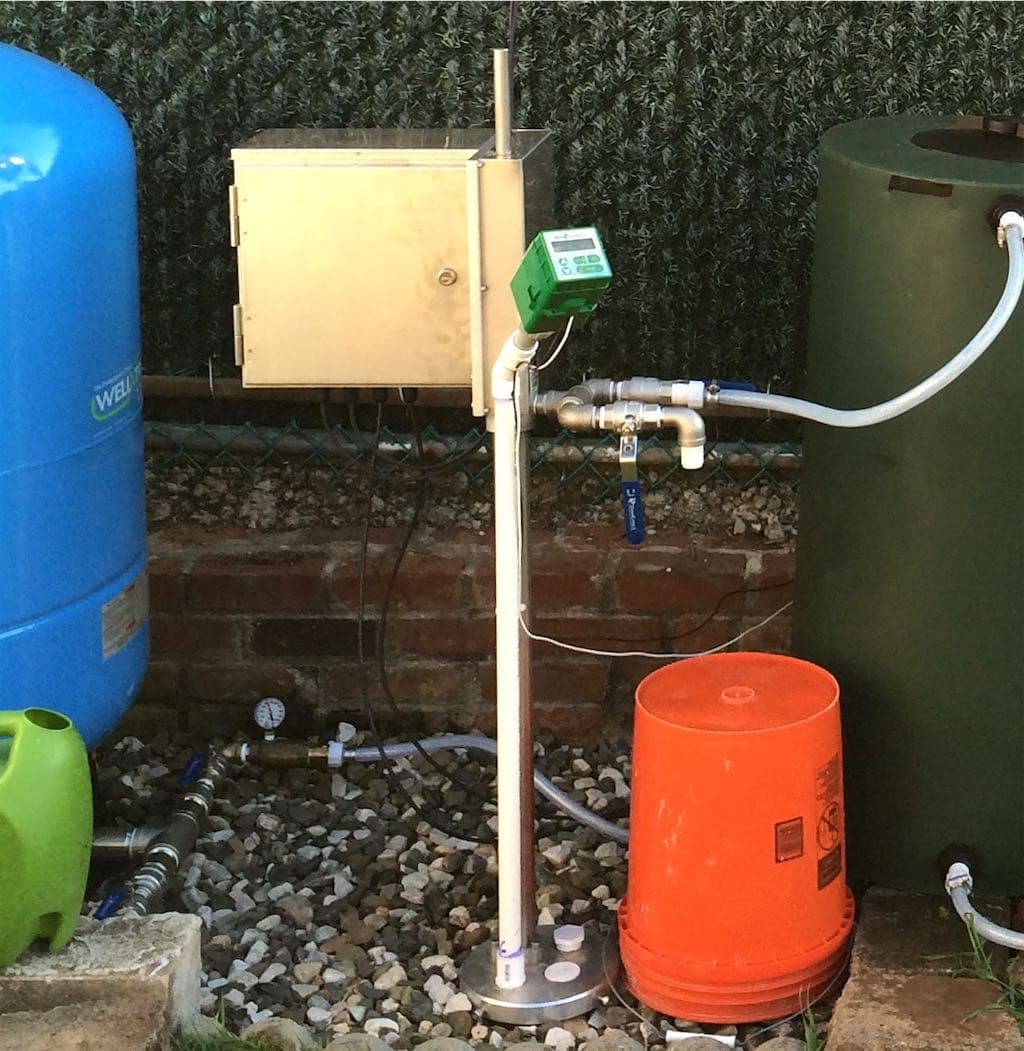

Outdoor Configuration

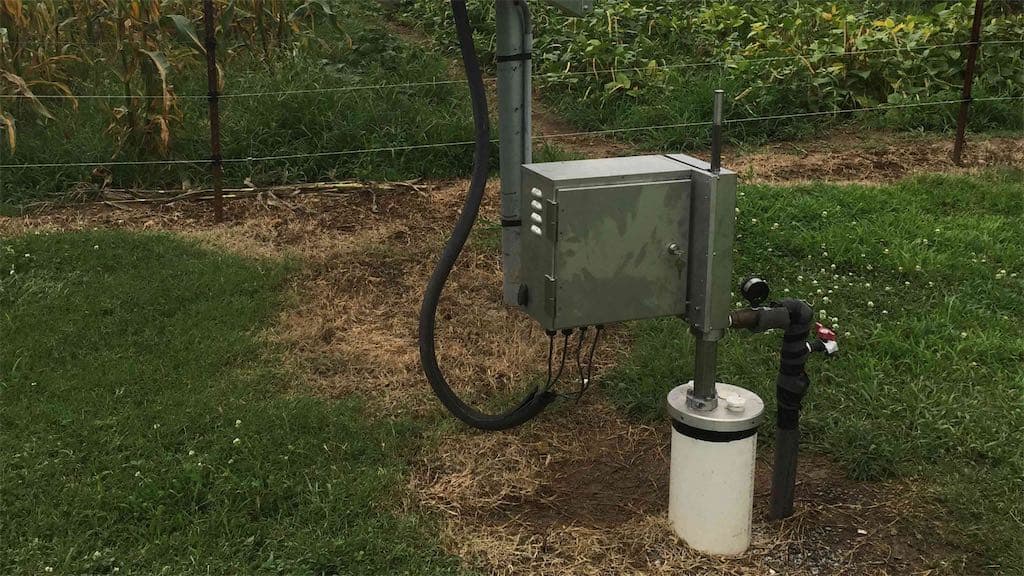

Motor plus outdoor cabinet.

The motor choice when do not have a shelter for the motor, and you want to provide the power configuration for the motor. You can choose the LBLD24-1WR weather-resistant option outfitted with a stainless steel enclosure.

INCLUDES

  • A gasketed and lockable stainless enclosure with a 1/4HP 24VDC gear motor and a weather-resistant rocker switch
  • Cole-Hersey relay
  • Terminal block
  • 36CFM ventilation fan
  • (1) fuse holder with 15amp ATO/ATC pronged, auto-style fuse

The breadboard has the holes drilled for the PS30M Morningstar charge controller, the Intermatic timer.

Motor add-on price starts at $1300
(The motor price is additional to the base hand pump.)

YOU SUPPLY

  • All components to provide and control the power to the motor.

For example, a solar panel system would include:

  • One or two polysilicon or microcrystalline PV modules (S-Energy) @ 260 watts each, 24VDC
  • 3″x 9′ or 4″x12′ galvanized steel mounting pole or roof-mount hardware
  • Sacrete, if using a pole mount
  • (2) group 27 or (2) group 31 deep cycle lead acid or AGM batteries
  • Any power and power-control hardware, e.g. Morningstar PS30 charge controller, Intermatic FM1QTUZH-24 timer.

Indoor Configuration

Simple Pump motor: indoor model for pump house or other sheltered use.

The perfect choice when you have a shelter for the pump system, and you want to take care of all power generation and electronics.

The 105ME/GM (scotch yoke mechanism) or LBLD24-1 (link drive mechanism) replaces the lever arm mechanism with five points of connection.  Both are offered in 12VDC or 24VDC.

Motor add-on price starts at $850 depending on the exact model.
(The motor price is additional to the base hand pump.)

YOU SUPPLY

  • Shelter, e.g. a pump house or smaller enclosure that gives a similar level of protection.
  • All components to provide and control the power to the motor.

Simple Pump’s Motor Advantages

  • Safe Drinking Water Act (SDWA) Compliant
  • Fits in almost all deep wells starting at 2-inches are larger
  • Can pump into your pressure tank giving you full use of all your home’s plumbing fixtures
  • Freezeproof and operates reliably 24/7 in high wind and hard freeze temperatures
  • Can be easily converted from a hand pump to a motor-operated pump or vice versa without the need to convert the entire pump system
  • Can be installed in a wide well or cistern with the use of our mounting plate adaptor
  • Standard connection to a 3/4″ hose or 3/4″ FNPT pipe
  • Works with a DC power source or our solar power systems
  • 12v and 24v DC motor option
  • Can be configured in a weather-resistant, stainless steel enclosure that provides protection from the weather and the outdoors
  • Can be configured as a standalone indoor unit where you provide protection from the weather and the outdoors. This can be a pump house or a similar enclosure that provides protection to the motor unit.

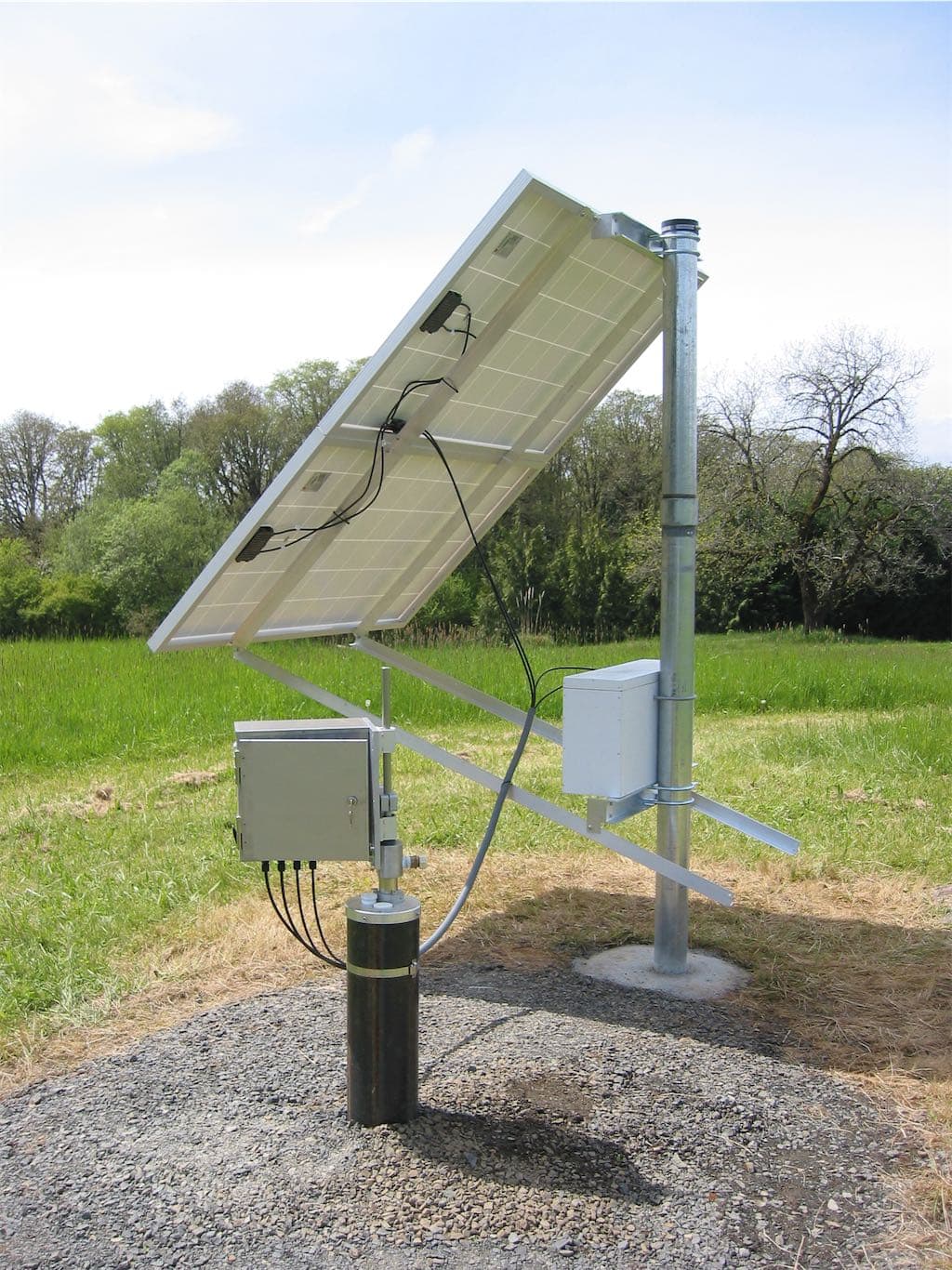

One of about 200 solar-powerd Simple Pumps in a Waste Management landfill.

The fact that even someone with no pump knowledge like myself could put this together and draw water from over 200 feet is a tribute to your equipment’s excellent design and remarkable customer support.

A Satisfied Customer

Successfully installed my pump today. I was very impressed with the quality craftsmanship and perfect instructions. It is clear your team pays careful attention to detail.

A Satisfied Customer
